small / mid-scale flat screen printer
large-scale flat screen printer
...........................................................
...........................................................
...........................................................
...........................................................
large-scale curve screen printer, heat transfer machine
screen printer with automatic feeder
plastic surface flame treatment device
...........................................................
...........................................................
...........................................................
...........................................................
  High Flat Printing System

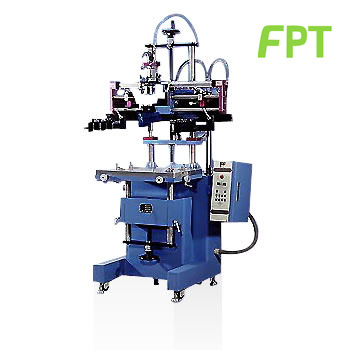

FF-500FA FF-600FA
Max. Printing(mm)
 300 x 400 350 x 500
Work Bench Area(mm)
 370 x 550 410 x 650
Speed/hr Max.
 600 ~ 1800 600 ~ 1800
Machine Dimension (mm)
 870 x 700 x 1750 970 x 700 x 1750
Machine Weight (kg)
 180 180
Voltage
 110v / 220v 60 / 50 hz

  大型平面吸風網印機
FF-1000F1
FF-800F1

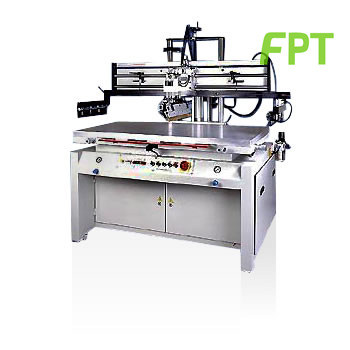

FF-1200F1
Max. Printing(mm)
400 x 950
600 x 700
600 x 1150
Max. Substrate's Height(mm)
30
80
30
Printing Speed (hr)
360 x 720
450~900
360~720
Max. Screen Frame Size (mm)
750 x 1350
900 x 1100
900 x 1550
Machine Dimension (mm)
1550 x 900 x 1850
1850 x 1090 x 18590
1750 x 1090 x 1850
Machine Weight (kg)
450
400
600
Voltage
110v or 220v 60 / 50hz
110v or 220v 60 / 50hz
110v or 220v 60 / 50hz
