small / mid-scale flat screen printer
large-scale flat screen printer
...........................................................
...........................................................
...........................................................
...........................................................
large-scale curve screen printer, heat transfer machine
screen printer with automatic feeder
plastic surface flame treatment device
...........................................................
...........................................................
...........................................................
...........................................................
  Plastic Surface Flame

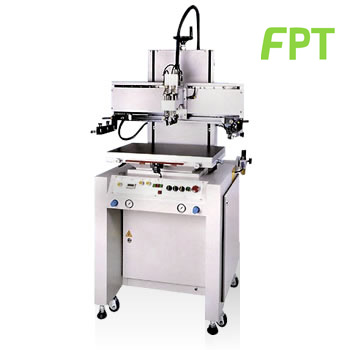

FF-500F1M
 FF-600F1M
Area of Flat Printing (mm)
 300 x 480 400 x 600
Work Bench Area (mm)
 400 x 600 500 x 700
Printing Speed(hr)
 600 ~ 1800 600 ~ 1800
Max. Screen Frame Size (mm)
 600 x 850 700 x 900
Machine Dimension(mm)
 50 x 750 x 1650 950 x 800 x 1750
Machine Weight (kg)
 250 420
Voltage
 1 (diameter) 220v/60hz 1 (diameter) 220v/60hz
  Plastic Surface Flame

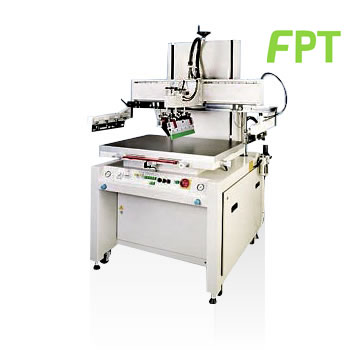

FF-800F1M
Area of Flat Printing (mm)
 600 x 800
Work Bench Area (mm)
 700 x 900
Printing Speed
 300 ~ 600
Max. Screen Frame Size (mm)
 900 x 1200
Machine Dimension(mm)
 1510 x 1200 x 1880
Machine Weight (kg)
 500
Voltage
 1 (diameter) 220v/50hz
