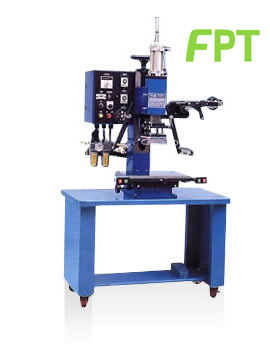

Dylindridal Products Attachment |
|
A-1 |
A-1T |
|
200 k |
|
100~120 mm |
|
60 mm |
|
200 mm |
Maximim Opening |
300 mm |
Work Table |
280 x 380 mm |
|
0~20 0mm |
|
40 kg |
Packing Weight |
200 kg |
Machine Dimension (mm) |
850 x 600 x 800 |
1250 x 600 x 800 |
Packing Diamention
(mm) |
900 x 650 x 1000 |
860 x 1000 x 850 |
|
1. 30 years of experience in marking hot-stamping machines specially designed for small hot stamping mark.
2. Square shaft design is table and strong
3. Man spindles are presision ground and can operate low pressure.
4. Special design for foil feeder
5. Special design heater is easy to up to 400 centigrade degree.
6. Special of small mark hot-stamping like pvc leather plastic pencil wood paper etc.
7. With auxiliary cpa unit may stamp the cylinder plastic surface. |
|
|
|
|

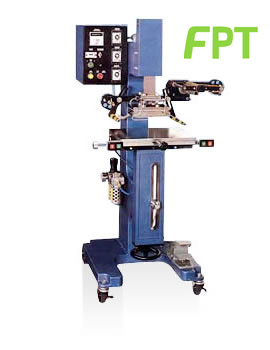

Air Operating Auto Hot Stamping Machine |
ac-3 |
|
3000 kg |
|
120~180 mm |
|
60 mm |
|
200 mm |
Maximim Opening |
280 mm |
Work Table |
280 x 380 mm |
|
0~400 mm |
|
190 kg |
Packing Weight |
|
Machine Dimension (mm) |
650 x 650 x 1500 |
Packing Diamention (mm) |
720 x 720 x 1650 |
|
1. 20 odd years professional experience in marking hot-stamping machines for small & medium mark.
2. Fc 25 structure is steel casting-never deformed & good lasting
3. Cylinder connecting toggle link and spindle system-fine precision & silent mechanical motion.
4. 3 timer operating systems-time for pressure, delating & foil rolling which can be easily adjustable with accuracy & high precision
5. Special design for foil rolling system-easily adjustable and accuracy on length.
6. Silgle toggle link design with fine precision up to 3000kg pressure & less friction loss.
7. Adptable to other accessories & automatic production
8. Special design modified heater-temperature up to 400 centigrade degree with embossing effect.
9. Suitable for small & medium hot-stamping mark like pvc covers, documents cilps, plastic wares, wooden make-up case & leather-carve etc.
|
|
|
|
|

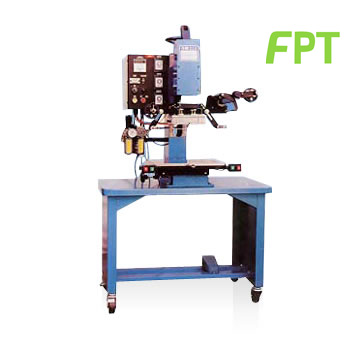

Air Operating Auto Hot Stamping Machine |
AC-2 / AC-2T |
|
2000kg |
|
120~180 mm , 120~180 mm |
|
45 mm |
|
200 mm |
Maximim Opening |
300 mm |
Work Table |
280 x 380 mm |
|
0~200 mm |
|
140 kg |
Packing Weight |
200 kg |
Machine Dimension (mm) |
750 x 650 x 850 |
Packing Diamention (mm) |
800 x 700 x 950 |
|
1. 20 years of experience in marking hot-stamping machines, specially designed for medium and small hot-stamping mark.
2. Strong body design is stable.
3. Main spindle are precision ground and can operate at low pressure.
4. 3 timer countrols for better performance, 1 for pressure time, 1 for delay time, 1 for foil feed adjustment.
5. Special design for foil feeder.
6. Specially designed heater is easy up to 400 centigrade degree
7. Single toggle link system designed for high pressure.
8. Special of small and medium mark hot-stamping like pvc leather, plastic, pencil, wood, paper, etc.
|
|
|
|
